Transmitter (Remote)
The master clock unit that broadcasts timecode to all receivers. Typically one per show. Battery-powered for portable operation.
Receiver
The prop controller installed on each light-up prop. Receives timecode and drives LED strips. Compact enough to embed in costumes, signs, or set pieces.
LED Strip Compatibility
PicoLume receivers work with 5V, 12V, and 24V addressable LED strips using the WS2812B protocol.
The standard "NeoPixel" - widely available, affordable, good color accuracy. 60 LEDs/m is common for props.
Drop-in WS2812B replacement. Available in RGBW variants for better white output.
External driver chip - often used in bullet-style pixels for larger installations.
Chip-on-board strips with WS2812B protocol. Smooth light output without visible dots.
WS2812B LEDs draw up to 60mA per LED at full white. For a 60-LED strip, budget ~3.6A at 5V. Use adequate wire gauge and consider power injection for longer runs.
PCB Design Series
Our hardware designs are organized into series, each targeting different use cases.
series-prop

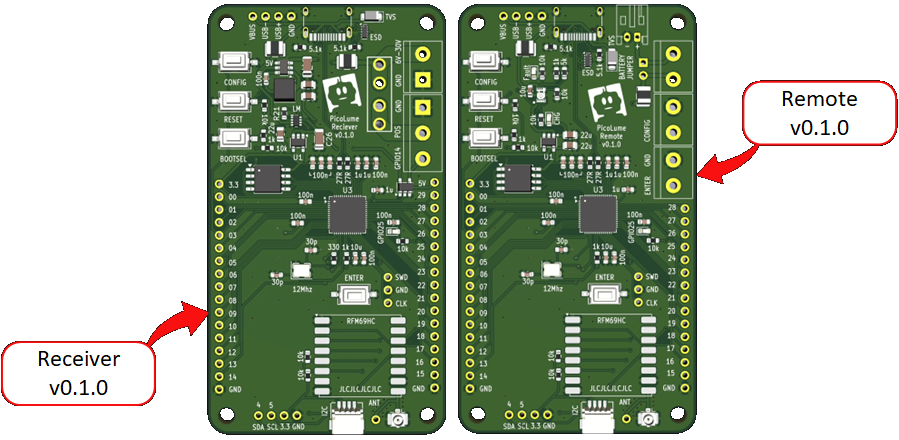

The main production design. Contains the PicoLume Board - a compact receiver control board with RP2040, RFM69HCW radio, USB-C, and LED driver circuitry.
series-legacy
Early prototype designs (v1-v4) used for proof-of-concept testing. Not recommended for production use.
